TCRE Ceiling-Concealed Fan Unit
SINKO small air handling units are primarily offered in the concealed ceiling-mounted fan unit (TCRE) series, available in both high static pressure and low static pressure models. They are suitable for use in commercial spaces such as retail stores, restaurants, hotels, offices, and hospitals. Each model is available in seven airflow capacities: 300 CFM, 400 CFM, 600 CFM, 800 CFM, 1000 CFM, 1200 CFM, and 1400 CFM. Power supply options include single-phase 220V or single-phase 110V.
Product Features
Casing: Constructed from sturdy and durable galvanized steel sheets, featuring an attractive appearance, solid structure, and easy installation.
Fan Wheel: Equipped with a galvanized steel double-inlet centrifugal fan, offering long-term durability without deformation. Dynamically balanced to ensure smooth, quiet operation.
Coil: Made with imported Japanese copper tubes, mechanically expanded to ensure tight bonding between aluminum fins and copper tubes, providing excellent heat transfer efficiency.
Motor: Capacitor-start motor with a special copper-alloy bearing design, ensuring safety, energy efficiency, low noise, and long service life.
Drain Pan: One-piece formed stainless steel drain pan, externally insulated with 6 mm thick PE foam insulation to prevent condensation and water dripping.
Specification Table
Product Model
TCRE (300-1400 CFM)
Remarks:
The pipe connection orientation is identified by facing the air outlet. Units with inlet and outlet water pipes on the left side are classified as left-hand connections; those with pipe connections on the right side are classified as right-hand connections.
Coils manufactured with special corrosion-resistant aluminum fins or copper fins are available upon order.

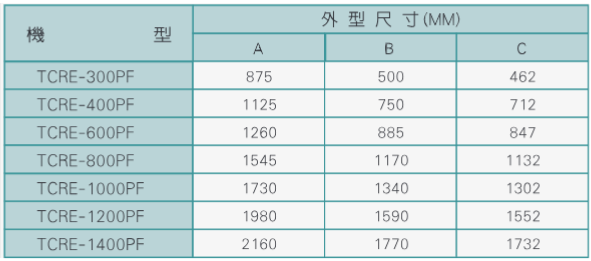

TCRE-PF (300-1400 CFM)
Remarks:
The pipe connection orientation is identified by facing the air outlet. Units with inlet and outlet water pipes on the left side are classified as left-hand connections; those with pipe connections on the right side are classified as right-hand connections.
Coils manufactured with special corrosion-resistant aluminum fins or copper fins are available upon order.
TC (300-1400CFM)
Remarks:
The pipe connection orientation is identified by facing the air outlet. Units with inlet and outlet water pipes on the left side are classified as left-hand connections; those with pipe connections on the right side are classified as right-hand connections.
Coils manufactured with special corrosion-resistant aluminum fins or copper fins are available upon order.

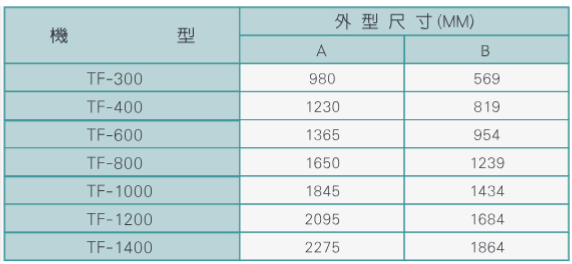

TF (300-1400CFM)
Remarks:
The pipe connection orientation is identified by facing the air outlet. Units with inlet and outlet water pipes on the left side are classified as left-hand connections; those with pipe connections on the right side are classified as right-hand connections.
Coils manufactured with special corrosion-resistant aluminum fins or copper fins are available upon order.
TFR (300-1400CFM)
Remarks:
The pipe connection orientation is identified by facing the air outlet. Units with inlet and outlet water pipes on the left side are classified as left-hand connections; those with pipe connections on the right side are classified as right-hand connections.
Coils manufactured with special corrosion-resistant aluminum fins or copper fins are available upon order.
Single Motor
Dual Motor
Cooling Capacity
Heating Capacity
